UNIVIEW IPC3534SA-DF28K-RU арт. IPC3534SA-DF28K-RU купить недорого в интернет магазине Связьстрой

Описание
Характеристики

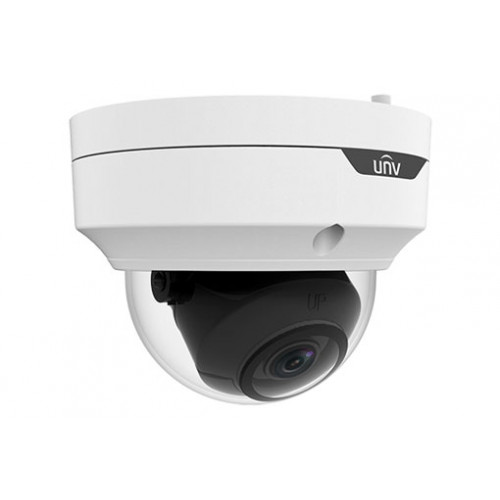

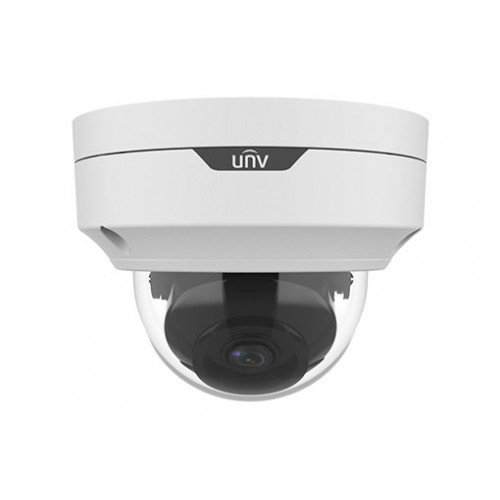

Сетевая 4 Мп купольная антивандальная видеокамера уличной установки серии LightHunter с Smart ИК подсветкой до 50 метров.

Объектив: Фиксированный 2.8mm@F1.6
Матрица: 1/1.8" CMOS, разрешение 2688x1520:30fps
Угол обзора: 103.8°
Технология: WDR 120dB, Ultra 265, H.265, H.264, MJPEG
День/ночь: ИК-фильтр с автоматическим переключением (ICR)
Интеграция: ONVIF, API
Аналитика: Smart-функции
Аудио: G.711U,G.711A
Минимальная освещенность: Цвет 0.001 Lux (F1.6, AGC ON), c ИК 0Lux
Класс защиты: IP67, IK10, 6KV
Температура эксплуатации: -40°C до +60°C
Питание: DC12V(±25%), PoE(IEEE 802.3af)
Потребляемая мощность: 8.3 Вт
Разъем для карт памяти: Micro SD, up to 256Gb
Bес: 0.59 кг

Настройка, управление и обслуживание сетевых видеокамер Uniview

	IPC3534SA-DF28K-RU				IPC3534SA-DF40K-RU
Camera
Sensor	1/1.8", 4.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F1.6				4.0mm@F1.6
Iris	Fixed
DORI Distance	Lens (mm)	Detect (m)		Observe (m)		Recognize (m)		Identify (m)
	2.8	42.0(137.8ft)		16.8(55.1ft)		8.4(27.6ft)		4.2(13.8ft)
	4.0	60.0(196.9ft)		24.0(78.7ft)		12.0(39.4ft)		6.0(19.7ft)
Angle of View (H)	103.8°				94.7°
Angle of View (V)	57°				49.6°
Angle of View (O)	134.9°				116.5°
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment angle	Pan: 0°~355°		Tilt: 0°~70°				Rotate: 0°~355°
Min. Illumination	Colour:0.001lux (F1.6, AGC ON) 0 lux with IR
WDR	120dB
Day/Night	IR-cut filter with auto switch (ICR)
IR Range	Up to 50m (164 ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Defog	Digital Defog
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 4MP(26881520),Max 30fps; Sub Stream: 2MP (19201080), Max 30fps; Third Stream: D1 (720*576), Max 30fps
Video Bit Rate	128 Kbps~16 Mbps
ROI	Supported
Video stream	Triple streams
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas(8 blacks/4 mosaics+4 blacks)
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC	Support
BLC	Support
Smart
General Function	Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711U,G.711A
Two-way Audio	Supported
Suppression	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR,NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Client	EZStation EZLive Ezview
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Interface
Audio I/O	Audio cable
	1 Input: impedance 35kΩ; amplitude 2V [p-p]
	1 output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O	1/1
Network	1 * RJ45 10M/100M Base-TX Ethernet
Certification
Certifications	CE: EN 60950-1 UL: UL 60950-1 FCC: FCC Part 15
General
Power	DC12V(±25%), PoE(IEEE 802.3af)
	Power consumption: Max 8.3W
	Support overcurrent protection, Input short circuit protection
Dimensions (Ø x H)	Φ128.1 x 99.9mm(Φ5.04" x 3.93")
Weight	0.59kg(1.3lb)
Working Environment	-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment	-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection	6KV
Vandal Resistant	IK10
Ingress Protection	IP67
